All Leica Lino lasers are self-levelling, so you can set-up, switch on and start working. Top quality optics and proven accuracy ensure that the projected lines give you a reference line that you can trust. Lino lasers are so simple to understand and operate, providing you with the flexibility to complete any interior application that require you to level, align, plumb or square.
Perfectly aligned and arranged
The lasers for quick setting-out and layout jobs and for easy upward and downward vertical aligning. Target plate, magnetic multifunction adapter, alkaline batteries (type AA, 3 × 1.5 V), pouch.
Article no. 884427
The tried-and-tested cross line laser for easy horizontal and vertical aligning. Target plate, magnetic multifunction adapter, ball adapter for tripod, alkaline batteries (type AA, 3 × 1.5 V), carrying pouch.
Article no. 848435
The handy cross line laser with extra-long laser lines for horizontal and vertical aligning. Target plate, magnetic multifunction adapter, alkaline batteries (type AA, 4 × 1.5V), pouch.
Article no. 864413
The small and handy all-rounder for quick setting-out, layout and alignment jobs. Target plate, magnetic multifunction adapter, alkaline batteries (type AA, 4 × 1.5V), pouch.
Article no. 864431

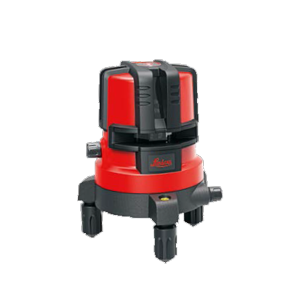

Multi line laser to cover a wide range of applications. It can be turned by 360° on a base plate with fine adjustment thus facilitating simple and easy marking of 90° layouts. It is easy to exchange the Li-Ion batteries with 24 hours of operation with normal alkaline batteries. Target plate red, Li-Ion battery pack, international charger with 4 plugs, Alkaline battery tray, hard case.
Article no. 834838
| Technical Data | Lino P3 | Lino P5 | Lino L2 | Lino L2+ | Lino L2P5 | Lino L4P1 | Lino ML90 |
|---|---|---|---|---|---|---|---|
| Range | Up to 15 m* | Up to 15 m* | Up to 15 m* | Up to 20 m | |||
| Smart Targeting | - | no | |||||
| Levelling accuracy@ 5 m | ±1.5 mm | ±1 mm | ±1.5 mm | ± 1 mm | ± 0.35 mm | ||
| Self-levelling range | 4° ±0.5° | ± 3° | ±5° | ||||
| Accuracy of plumb point@ 5 m | ±1.5 mm | ±1.5 mm | ± 1 mm | ± 0.5 mm | |||
| Accuracy of horizontal line @ 5 m | - | ±1.5 mm | ± 1 mm | ± 0.35 mm | |||
| Vertical accuracy@ 3 m line length | - | ±0.75 mm | ±0.75 mm | ± 1 mm | ± 0.2 mm | ||
| Beam direction | Up, down, forward | Up, down, forward, right, left | Vertical, horizontal | Vertical, horizontal | Vertical, horizontal, up, down, right, left | 3 vertical and 1 horizontal lines, 1 plumb down | vertical forward, right and horizontal, plumb down |
| Laser type | 635 nm / Class 2 | 635 nm / Class 2 | |||||
| Protection class | IP 54 | ||||||
| Battery | Type AA 3×1,5V | Type AA 4×1,5V | rechargeable Li-Ion batteries (and Alkaline batteries 4xAA, 1.5 V) | rechargeable battery pack (NiMH) or alkaline D-cells, 2×1.5 V | |||
| Weight without batteries | 310 g | 320 g | 321 g | 370 g | 1073 g | 2,200 g | |
| PROTECT service offering | Manufacturer's Warranty: Lifetime No Cost period: 2 plus 1 years with registration | ||||||
